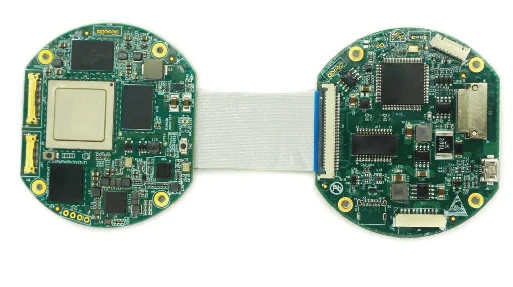

Lub RK3588 MIPI CSI Lub Koob Yees Duab Txhim Kho Pawg nrog 8-core CPU thiab 6TOPS NPU rau kev ua haujlwm zoo AI pom kev. Txhawb 3-channel video inputs (MIPI + BT.1120) nrog kev sib koom ua ke V4L2 interface thiab kev tshaj lij sensor sib raug zoo. Nruab nrog Gigabit Ethernet, ntau qhov chaw nres nkoj, thiab tswj lub cev muaj zog / kiv cua. Compact Φ70 × 17.2mm loj, dav qhov kub thiab txias (-40℃~{14}} degree), Linux system nrog RKNN API thiab cov piv txwv algorithm, ua kom yooj yim rau kev txhim kho thiab kev xa mus nrawm.
Technical Specification
|
Qeb |
Parameter |
Tus nqi tsim nyog |
|
Core Processor |
Qauv |
Rockchip RK3588 (8nm) |
|
CPU |
8-core 64-ntsis (4Cortex-A76+4Cortex -A55) |
|
|
NPE |
6TOPS, tri-core; int4/int8/FP16/BF16 txaus siab |
|
|
Nco & Cia |
RAM |
8GB LPDDR4X |
|
Ua -hauv |
64GB eMMC |
|
|
Txuas ntxiv |
SD qhov, max 128GB |
|
|
Multimedia |
Kev txiav txim siab |
H.265/H.264/AV1, mus txog 8K60FPS |
|
Encoding |
H.264/H.265, mus txog 8K30FPS |
|
|
Video tswv yim |
Digital |
2 × MIPI + 1 × BT.1120; V4L2 txheem interface |
|
Interfaces |
Ethernet |
1 × Gigabit adaptive (RTSP kev them nyiaj yug) |
|
Serial |
4 × UART (TTL3.3V), 2 × RS422 |
|
|
USB/Control |
1 × USB2.1 Hom-C; Lub cev muaj zog / kiv cua, SWD download |
|
|
Siab -ceev |
PCIe3.0/PCIe2.0/SATA3.0 |
|
|
Fais fab mov |
Qhov hluav taws xob |
DC 12 V |
|
Neeg kho tshuab |
Loj |
Φ70 × 17.2 hli (excl. connectors) |
|
Ib puag ncig |
Kev khiav hauj lwm Temp |
-40℃~ +60 degree |
|
System & Dev |
OS |
Linux (Ubuntu) |
|
API/Piv txwv |
RKNN Runtime; YOLOv5 nrhiav pom, lub hom phiaj taug qab |

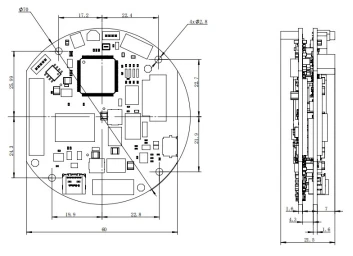

Mechanical Drawing
Daim ntawv thov Scenario
- Missile seeker duab ua & AI paub
- Airborne/ship-yuav muaj photoelectric pod vision systems
- Hauv av / tsheb -mounted photoelectric turret AI ua
- Kev lag luam siab - qhov tseeb tshuab pom kev pom
- UAV/UGV visual perception modules
- Aerospace / kev tiv thaiv kev tshaj lij cov duab ua khoom siv
Key Function & Advantages
- Triple digital video input, sib xws nrog cov duab sensors
- 6TOPS NPU, ua haujlwm tau zoo rau txoj haujlwm AI tsis pom kev
- Modular tsim, saj zawg zog interface expansion thiab dev
- Compact ncig loj, zoo tagnrho rau me me -chaw embedded systems
- Integrated lub cev muaj zog / kiv cua tsav, ua tau raws li cov khoom siv hluav taws xob tswj kev xav tau
- Dav kub adaptability, ruaj khov nyob rau hauv huab ib puag ncig
- Standardized kev txhim kho interface, tsis tshua muaj kev txhim kho tus nqi
- 8K video kev ua tau zoo, tiag - lub sij hawm encoding rau kev sib kis ceev
Khoom Series & Muaj
1. Raws li Huawei Ascend 310 thiab RK3588 series processors, cov khoom kab muab kev suav lub zog xws li 8TOPS mus rau 176TOPS@INT8. Nrog kev hloov pauv loj thiab lub zog siv, nws txhawb kev tswj xyuas ntse rau cov khoom siv tsis siv neeg, tswj kev lag luam thiab lwm yam haujlwm.
2. Nws cov txiaj ntsig tseem ceeb suav nrog 100% cov khoom siv hauv tsev thiab ywj pheej tswj tau, nrog rau kev sib raug zoo siab. Nws txhawb ntau lub tshuab ua haujlwm, cov qauv kev kawm tob tob, kev sib txuas ntau thiab ob hom kev ua haujlwm rau ntau hom kev xa tawm.
3. Muaj ntawv pov thawj, cov khoom lag luam ua tau raws li cov qauv tsim thiab khaws cia hauv kev ua haujlwm kub, ua kom muaj kev ruaj ntseg hauv qhov chaw hnyav.
